Description

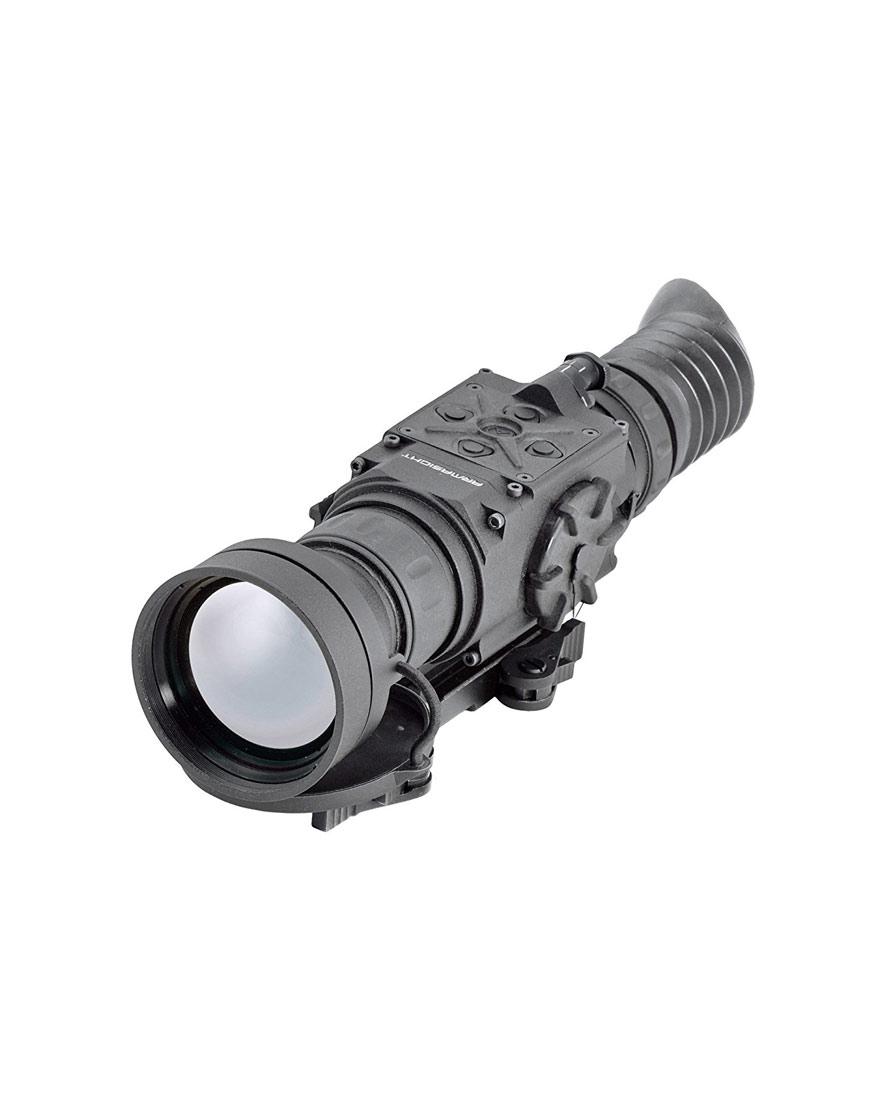

The Zeus 5X 336×256 Core 30 Hz Thermal Imaging Riflescope combines the ergonomic features of a handheld scope with the convenience of weapon mounting capacity. Based on the proven 336×256 microbolometer core, the Zeus 5X scope is an ideal product for force protection, border patrol officers, police SWAT officers and special operations forces, providing users with the necessary tools to be successful in both daytime and nighttime field conditions. Uncooled thermal imaging cuts through dust, smoke, fog, haze and other battlefield obscurants. Its use cannot be detected, as it emits no visible light or RF energy and operates without the use of illuminators or IR lights.
Features:
High-performance thermal imaging camera
Lightweight and robust design
Easy to operate
Manually adjustable eyepiece and objective lens
Real-time display
Digitally controlled features:
– Adjustable display brightness
– Selectable 6-pattern reticle including no reticle option
– Switchable reticle colour
– Selectable image palette
– Temperature measurement
– Hunting scenarios function
– Field environment corrections
– Zoom
– Windage/Elevation boresighting
Displaying information on the current operating state (battery status, active function etc.)
Wireless remote control
Analog video input and output (NTSC/PAL)
Powered by two standard CR123A batteries
Power input capability
Digital video recorder (optional)
Fits any Picatinny MIL STD 1913 and Weaver rail with an adjustable quick-release mount
Serviceability under severe conditions
Filled with dry nitrogen to prevent internal fogging
Waterproof
Limited two-year warranty
SPECIFICATIONS:
SYSTEM DATA:
Refresh Rate: 30 Hz
Magnification (NTSC/PAL): 5.0x / 6.0x
Objective Lens Type: Germanium
Type of Focal Plane Array: FLIR Tau 2
Pixel Array Format: 336×256
Pixel Size: 17 μm
Resolution, mrad: 0.23
Display Type: AMOLED SVGA 060
Pixel Display Format: 800×600
Display Brightness: Discretely Adjustable to 8 Levels
Turn-on Time, max: 3 sec
Digital Zoom: 1x, 2x, 4x, and 8x
Temperature Imaging Modes (Image Palettes): White Hot, Black Hot, Fusion, Rainbow, Globow, Ironbow 1, Ironbow 2, Sepia, Color 1, Color 2, Ice-Fire, Rain, and OEM Custom
Color Modes: White Hot/ Black Hot/ Rainbow/ Color
Reticle Type: 6-Pattern Digitally Controlled: “Dot 4 MOA”, “Line Dot”, “Cross Center Dot”, “Cross”, “Crosshair”, or “No Reticle”, and “No Reticle”
Reticle Colour: Black, White, Red, Cyan
Windage/Elevation Boresight Adjustment Type: Digitally Controlled
Windage/Elevation Boresight Increment: 0.76 MOA
Windage Adjustment Range: ±60 MOA
Elevation Adjustment Range: ±46 MOA
Analog Input/Output Format: PAL/ NTSC
Output Resolution:
– PAL: 768×574 pixels
– NTSC: 640×480 pixels
MECHANICAL DATA:
Weapon Mount Type: Picatinny MIL STD 1913 and Weaver Rails
Overall Dimensions: 275×70×80 mm; 10.8’’×2.8’’×3.2’’
Height of the Zeus Axis above Rail: 40 mm (1.57 in)
Weight (w/o Batteries): 0.8 kg (1.8 lbs)
