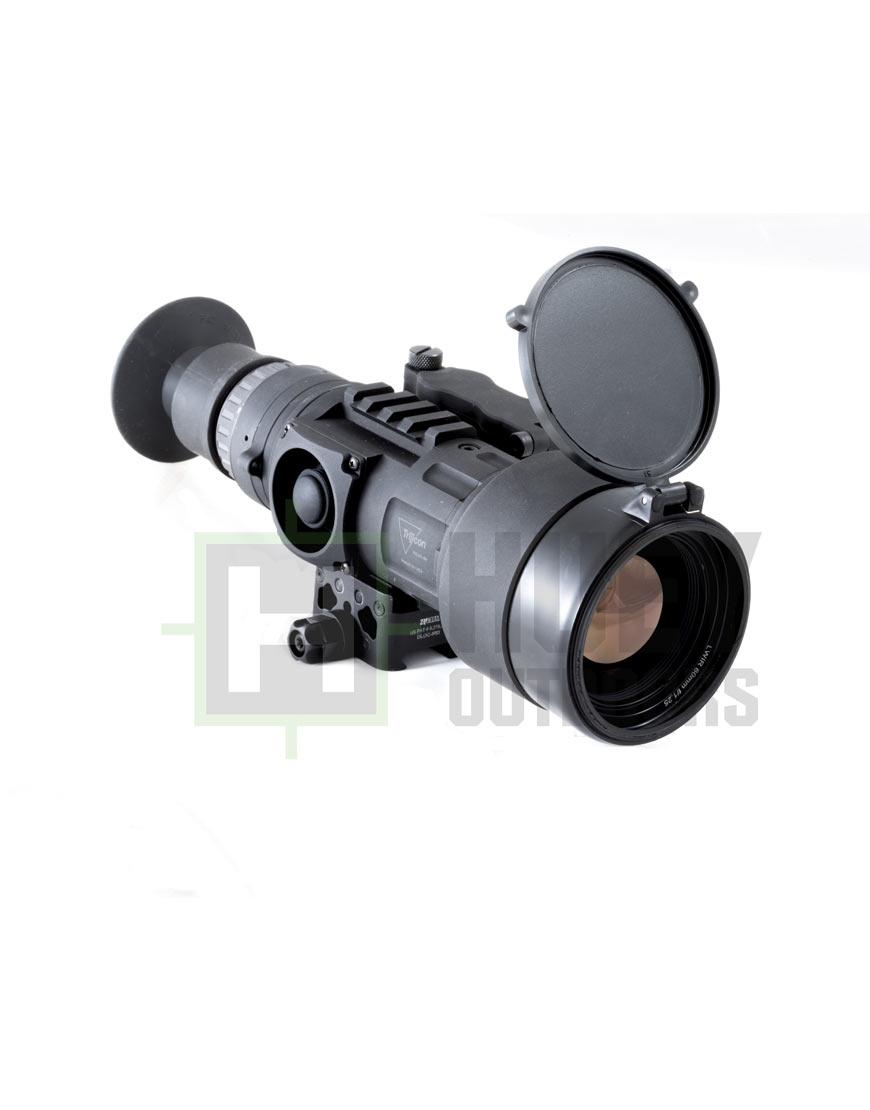

REAP-IR Type 2 60mm

Description

The REAP-IR Type 2 with 60mm Objective Lens from Trijicon is an upgraded version of the original REAP-IR thermal optic. The REAP-IR Type 2 functions as a dedicated weapon sight, a hand held observation unit, or headwear mounted unit. The mil-spec REAP-IR Type 2 features several upgrades over the REAP-IR including new zoom options and new easy zero.

Read Todd’s article about what to know before buying a thermal scope:

What to Know Before Buying a Thermal Scope

There are lots of options to consider when buying a thermal scope. It is a large investment for most people and can cost…

Features:

• 640×480 Thermal Sensor offers clear, crisp imagery through smoke, dust and complete darkness
• Thumbstick System Controller – Fully ruggedized, weatherproof, multidirectional thumbstick control
• Mini D-LOC Mount – Patented, compact mounting system for precision and repeatability
• MicroIR 12 Micron Technology – 60 Hz frame-rate system with 42% increase in magnification over 17 micron technology
• Stadiametric Ranging – Determine your distance at a moment’s notice
• Reticle Digital Readouts – Displays your current reticle position in the lower-left corner of the screen
• Edge Detect Mode – Offers a fraction of the brightness of other modes so your eyes are not as prone to night blindness from the screen
• 8x Digital Zoom – Advanced built-in sighting system maintains boresight and increases accuracy
• Multiple Reticle Save Locations
• 5 Reticle Patterns with MOA Adjustments
• Dedicated Riflescope with Optional Clip-On Mode
• Six Levels of White Hot/Black Hot
• ~5 Second Startup Time
• Analog RS-170 Video Output (with Optional Cable)

Trijicon REAP-IR Type 2 with 60mm Objective Lens Upgrades

• New Magnification Option: 4.5x
• New Easy Zero
• New Improved Battery Cap
• Integrated Picatinny Rail
• New, Ruggedized Battery Compartment

Specifications for Trijicon Electro Optics REAP-IR 20mm V2 Thermal Weapon Sight:

• Magnification: Range 4.5 – 36 x
• Objective Lens Diameter: 60 mm
• Finish: Matte Black
• Field of View: 12 degrees
• Length: 7.51 in
• Weight: 32 oz
• Battery Type: 2 X CR123
• Resolution: Range 640 – 480 Pixels
• Eye Relief: 27 mm
• Color: Black
• Operating Temperature: Range -40 – 55 Celsius
• Diopter Adjustment Range: Range -6 – 2 dpt
• Height: 2.96 in
• Width: 3.42 in
• Battery Life: 2 hours per battery
• Refresh Rate: 60 Hz with a 30 Hz power saving mode
