Description

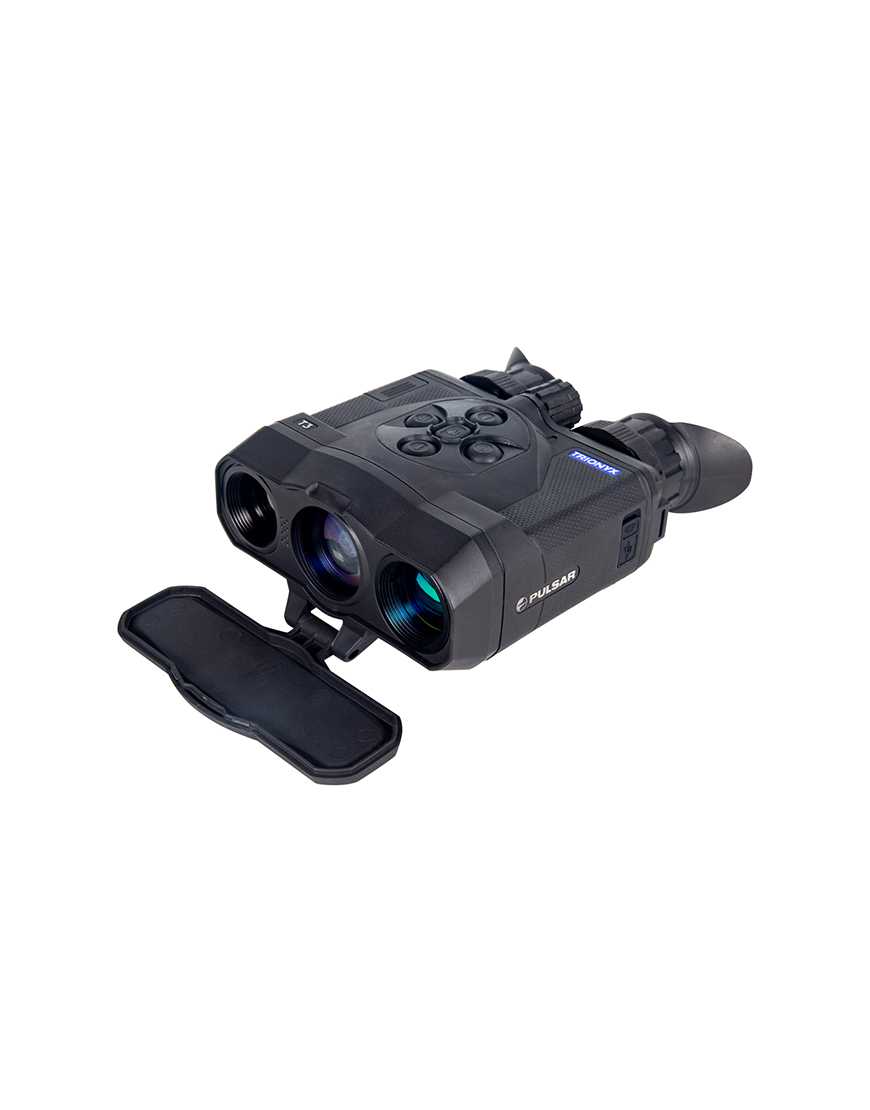

Trionyx multispectral binoculars are a massive technological innovation – thermal and digital night vision imaging combined in a single unit. Trionyx binoculars boast the detection range of a fixed focus 384×288 thermal sensor—over 1,000 yards—while also maintaining the target-identification capability of focusable digital night vision. Using the included 850nm IR Illuminator, virtually nothing can escape the Trionyx’s detection.
The Trionyx’s thermal imaging has 2.5-10x magnification, and the digital night vision has 3.5-14x, so users can customize their view on its high-def AMOLED display. Its eight unique color palettes only add to the Trionyx’s distinct versatility.
Beyond the Trionyx’s multispectral capabilities, it is loaded with stunning technological features. Utilizing the built-in video recording, 16GB of internal memory, Wi-Fi connectivity, users can capture, save and share all their exciting memories. Robust and hardy from inception, Trionyx binoculars have a 6-hour battery with the Pulsar TPS7 Li-Ion and an IPX7 waterproof rating.
Features:
- Multi-channel thermal/digital/fusion overlay imaging modes
- 384×288 thermal resolution sensor
- 1280×720 AMOLED display
- 1280×720 CMOS Sensor
- 1000yd Thermal Detection Range
- 450yd Digital NV Detection Range
- Focusable Digital NV for Positive Target Identification
- Built-in 850nm IR Illuminator
- Built-in Recording & Wi-fi capability
- IPX7 Waterproof Rating
- Functions after being submerged in 1 meter of water for 30 minutes
- Shockproof Glass-Nylon Composite Body
Specifications |
||||||
| Sensor Resolution (pixels) | 384 x 288 | |||||
| Frame Rate (Hz) | 50 | |||||
| Sensor Response | LWIR | |||||
| Pixel Pitch (µm) | 17 | |||||
| Display Type | AMOLED | |||||
| Display Resolution (pixels) | 1280 x 720 | |||||
| Built In Video Recorder Availability (yes/no) | Yes | |||||
| Format of Video Clip | .mp4 | |||||
| Resolution of Video Clip | 1024 x 768 | |||||
| Resolution of Photo Files | 1024 x 768 | |||||
| Type & Max Capacity of Memory Card | eMMC 16 Gb | |||||
| Approximate Capacity of Memory Card (minutes / Gb) | 25min/1Gb | |||||
| Video Out Availability (yes/no) | NA | |||||
| Type of Video Output | NA | |||||
| Magnification (x) | Digital Channel – 3.5-14X
Thermal Channel – 2.5-10X |
|||||
| IR Illuminator | 850nm | |||||
| Objective Lens Diameter (mm) | 26mm
(1 in) |
|||||
| Digital Zoom (x) | 2/4 | |||||
| Lens Focus (mm) | 30mm
(1.2in) |
|||||
| Relative Aperture (D/f’) | F/1.25 | |||||
| Field of View (°, horizontal x vertical) | 9.1 degrees horizontal | |||||
| Field of View (m @ 100 m) | 21.8 horizontal | |||||
| Field of View (yd @ 100 m) | NA | |||||
| Close Focus Distance (ft./m) | Thermal – Fixed focus
Digital – 5m minimum |
|||||
| Eye Relief (in/mm) | .59
(15) |
|||||
| Exit Pupil Diameter (mm) | 3.5 | |||||
| Diopter Adjustment (dptr) | +/-5 | |||||
| Range of Detection, (yd./m) (human = 1.7mx.5m) | Thermal – 1000m (1093 yards)
Digital – 450m (492 yards) |
|||||
| Power Supply (v) | 3.7 | |||||
| Battery Type | Li-Ion | |||||
| Battery Life, w/o IR (hour) | 6 | |||||
| Battery Life, with IR (hour) | 4.5 | |||||
| External Power Supply | Yes – 5V USB Type-C | |||||
| Nitrogen Filled | NA | |||||
| Fogproof | Yes | |||||
| Shockproof | Yes | |||||
| IP Standard (water rating) | IPX7 | |||||
| Body Material | Glass-Nylon Composite | |||||
| Operating Temperature (°F/°C) | -13 to 104
(-25 to 40) |
|||||
| Length (in/mm) | 6.5in
(165mm) |
|||||
| Width (in/mm) | 5.2in
(131mm) |
|||||
| Height (in/mm) | 2.6in
(66mm) |
|||||
| Weight (oz.) | 0.76 | |||||
| Packaging Contents | Multispectral Fusion Binoculars
Carrying Case User manual Battery Pack TPS 7 Lens Cleaning Cloth USB Type-C cable Neck strap TPS7 Battery charger 220V USB charger |
|||||
