Description

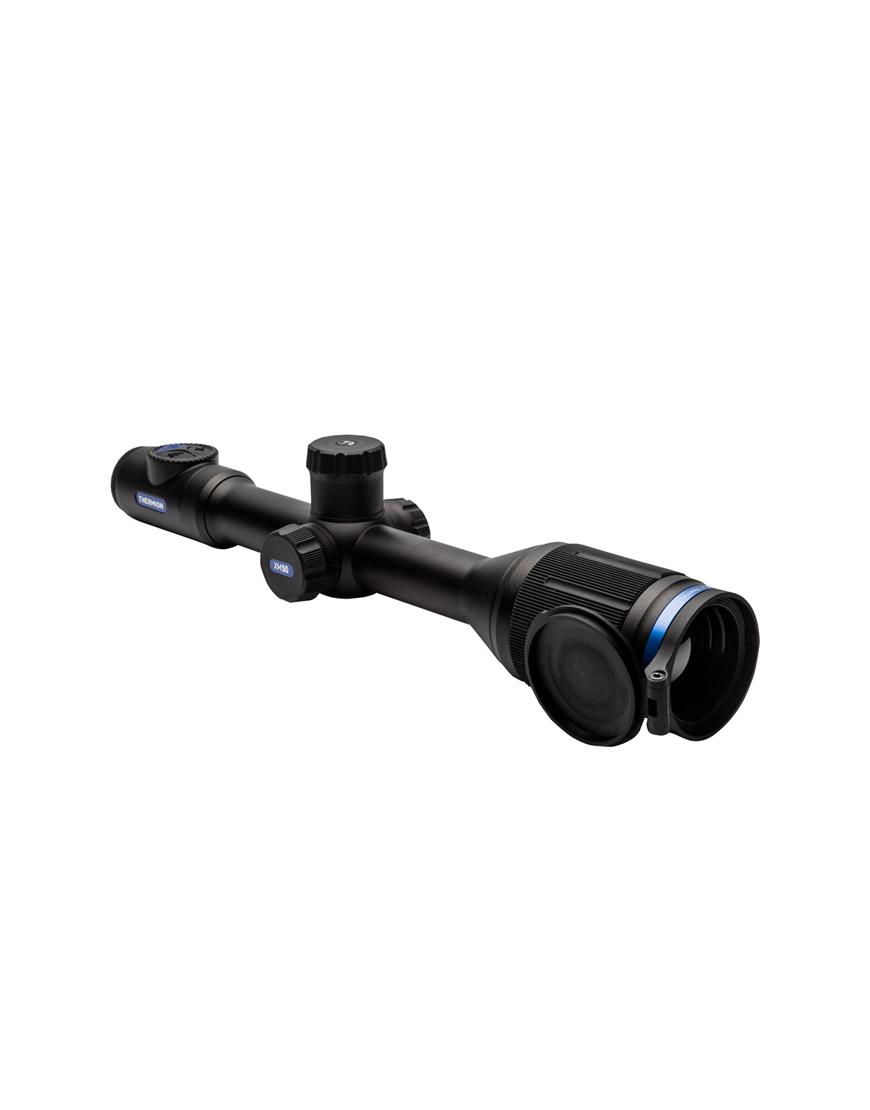

The new Pulsar Thermion Thermal line of riflescopes offer many of the same features of the Pulsar Trail series in a traditional 30mm tube scope construction. Thermion riflescopes are available in 640 and 320 resolution. Recoil rated to 375 H&H and waterproof construction make it ready for any hunting experience. Over 10 different reticles are preloaded into the Pulsar Thermion.
Read Todd’s article about what to know before buying a thermal scope:
Features:
- Highly sensitive thermal imaging sensor
- Extreme Detection Range 1800м (2,000 Yds)
- Fast Aperture 0 Germanium Optics
- Variable Digital Zoom
- Recoil Rated up to .375 H&H, 12-Gauge and 9.3×64
- Mounts on Standard 30mm Scope Rings
- Instant Start-up
- Rugged, Reliable All-Metal Housing
- IPX7 Waterproof Rated
- Zeroing Profiles Management
- Customizable Reticle Options
- Full-Color, HD AMOLED Display
- Video and Still-Photo Recording
- Picture-in-Picture
- Various Color Palettes
- Stream Vision App Supported
- Upgradable Functional
- User-Friendly Controls
- B-Pack Mini Combined Power System
| Model # (SKU) | PL76546 |
| Type of microbolometer | Uncooled |
| Microbolometer resolution, pix. | 384х288 |
| Thermal sensitivity (NETD), mK | <40 |
| Frame rate, Hz | 50 |
| Pixel pitch, µm | 17 |
| Display type | AMOLED |
| Display resolution, pix. | 1024×768 |
| Magnification, x | 3.5-14 |
| Digital zoom, x | 2/4 |
| Lens focus, mm | 50 |
| Relative aperture, D/f’ | 1:1 |
| Field of View,°, horizontal | 7.5 |
| Minimum focusing distance, m | 5 |
| Eye relief, mm | 50 |
| Diopter adjustment, dptr. | -3/+5 |
| Detection range, m (object size = 1.7×0.5m) | 1800 |
| Windage & elevation, 1 click, mm/100m | 13 |
| Reticle adjustment range, H/V, mm/100m | 2600/2600 |
| Reticle options | 10 (3 scalable, 7 static) |
| Zeroing coordinates memorization | 5 profiles (10 coordinates each) |
| Side tilt indication | yes |
| Picture in Picture option | yes |
| Observation modes | rocks, forest, identification, user mode |
| Color palettes | 8 |
| Integrated video recorder | yes |
| Built-In memory, GB | 16 |
| Format of video files | MPEG-4 1024×768 |
| Format of photo files | JPEG 1024×768 |
| Integrated Wi-Fi module | yes |
| Stream Vision app support | yes |
| Battery type | Combined B-Pack Internal + external |
| Battery life, h | 7 |
| External power Supply | Micro USB 5.0V |
| Operating temperature, °С | -25/+50 |
| Water ingress protection | Waterproof IPX7 |
| Calibration | manual, auto semi-auto |
| Shock resistance on weapon, J | 6000 |
| Type of mounting on weapon | 30 mm rings |
| Dimensions, mm/in | 412x78x83 / 16.22×3.07×3.26 |
| Weight (without external battery), g/oz | 900 / 31.74 |
What’s in the box?
- Charging unit
- Carrying case
- Warranty card
- User manual
- Cleaning cloth
- Hex wrench
