Description

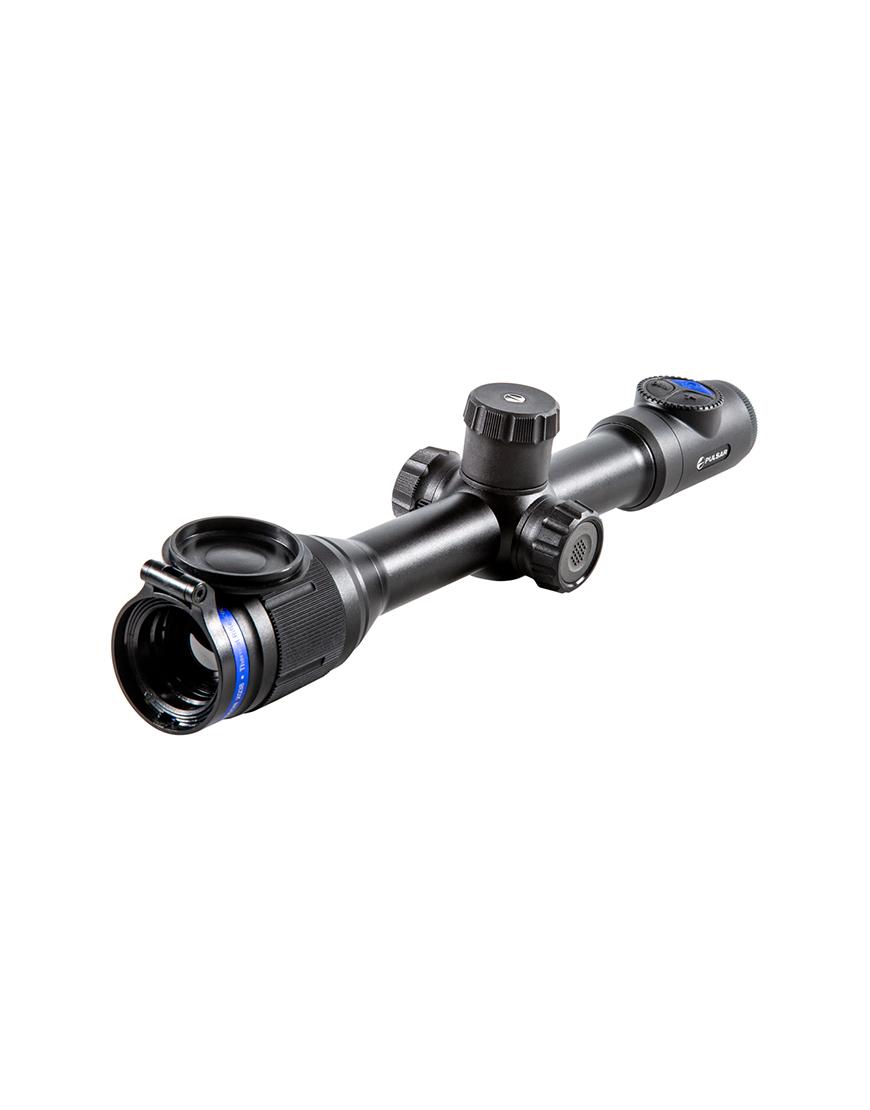

Built on a new hardware platform featuring a new highly sensitive thermal imaging detector with <40 mK NETD and HD AMOLED microdisplay, Thermion XQ38 is able to produce sharp contrasted and full of detail images in all conditions. Capabilities of thermal detectors are pushed even further by proprietary software features of PULSAR like Image Detail Boost technology and Observation modes. Integrated laser rangefinder provides quick on-the-go range data for precision shooting. Video recorder with 16 Gb of internal memory, Wi-Fi module, and a number of other important features turn the unit into a versatile hunting tool for even the most demanding professionals.
Read Todd’s article about what to know before buying a thermal scope:
- Highly sensitive thermal imaging sensor
- Extreme Detection Range 1800м (2,000 Yds)
- Fast Aperture 0 Germanium Optics
- Variable Digital Zoom
- Recoil Rated up to .375 H&H, 12-Gauge and 9.3×64
- Mounts on Standard 30mm Scope Rings
- Instant Start-up
- Rugged, Reliable All-Metal Housing
- IPX7 Waterproof Rated
- Zeroing Profiles Management
- Customizable Reticle Options
- Full-Color, HD AMOLED Display
- Video and Still-Photo Recording
- Picture-in-Picture
- Various Color Palettes
- Stream Vision App Supported
- Upgradable Functional
- User-Friendly Controls
- B-Pack Mini Combined Power System
| Model # (SKU) | PL76545 |
| Type of microbolometer | Uncooled |
| Microbolometer resolution, pix. | 384х288 |
| Thermal sensitivity (NETD), mK | <40 |
| Frame rate, Hz | 50 |
| Pixel pitch, µm | 17 |
| Display type | AMOLED |
| Display resolution, pix. | 1024×768 |
| Magnification, x | 2.5-10 |
| Digital zoom, x | 2/4 |
| Lens focus, mm | 35 |
| Relative aperture, D/f’ | 1:1 |
| Field of View,°, horizontal | 10.7 |
| Minimum focusing distance, m | 5 |
| Eye relief, mm | 50 |
| Diopter adjustment, dptr. | -3/+5 |
| Detection range, m (object size = 1.7×0.5m) | 1350 |
| Windage & elevation, 1 click, mm/100m | 18 |
| Reticle adjustment range, H/V, mm/100m | 3600/3600 |
| Reticle options | 10 (3 scalable, 7 static) |
| Zeroing coordinates memorization | 5 profiles (10 coordinates each) |
| Side tilt indication | yes |
| Picture in Picture option | yes |
| Observation modes | rocks, forest, identification, user mode |
| Color palettes | 8 |
| Integrated video recorder | yes |
| Built-In memory, GB | 16 |
| Format of video files | MPEG-4 1024×768 |
| Format of photo files | JPEG 1024×768 |
| Integrated Wi-Fi module | yes |
| Stream Vision app support | yes |
| Battery type | Combined B-Pack Internal + external |
| Battery life, h | 7 |
| External power Supply | Micro USB 5.0V |
| Operating temperature, °С | -25/+50 |
| Water ingress protection | Waterproof IPX7 |
| Calibration | manual, auto semi-auto |
| Shock resistance on weapon, J | 6000 |
| Type of mounting on weapon | 30 mm rings |
| Dimensions, mm/in | 399x78x83 / 15.7×3.07×3.26 |
| Weight (without external battery), g/oz | 750 / 26.45 |
